Rope Manipulator - Pneumatic System

Fully pneumatic rope manipulators offering an ergonomic and economical solution where the center of gravity remains constant during handling. Soyerpek quality with reliable performance.

Teknik Özellikler

📊

Kapasite:Up to 200 kg

📏

Yarıçap:Up to 5 meters

Özellikler

✓Models with lifting capacity up to 200 kg
✓Scanning radii up to 5 meters
✓Custom-designed grippers as needed
✓Ergonomic and safe operation

Rope Manipulator

Rope manipulators provide an ergonomic and economical solution in processes where the center of gravity position does not change during handling. Fully pneumatic rope manipulators enable fast and safe handling of a wide variety of products.

Working Principle

Rope manipulators show optimum performance in applications where the center of gravity of the load remains fixed. Thanks to the pneumatic balancing system, the operator can carry loads by applying minimal force.

Advantages

Economic Solution: Low investment cost
Fast Installation: Simple assembly process
Low Maintenance: Minimum maintenance requirement
High Reliability: Simple and durable design
Ergonomic Use: Minimizes operator fatigue

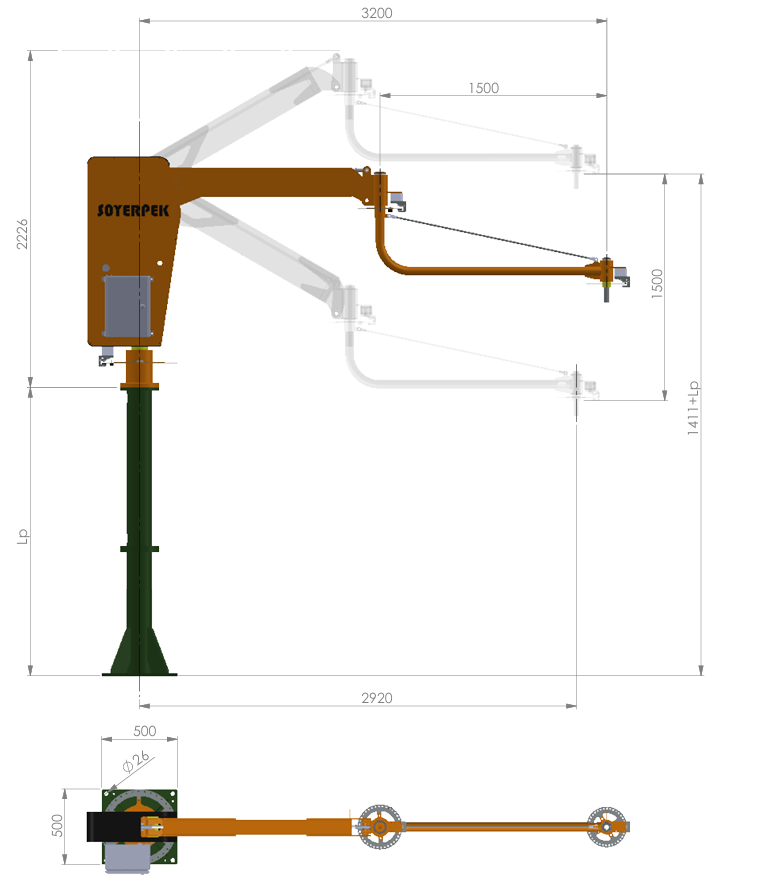

Technical Specifications

AirBuddy-S-P Model

Product Name: AirBuddy-S-P
Maximum Load: 200 kg
Maximum Moment: 800 Nm
Maximum Stroke: 1500 mm
Tare Weight: 400 kg
Working Pressure: 6 bar

Lifting Capacity

Standard Models: 25 kg - 200 kg range
Special Applications: Customizable according to needs

Working Area

Scanning Radius: Up to 5 meters
Vertical Movement: Up to 3 meters
Rope Length: Adjustable according to needs

Pneumatic System

Working Pressure: 6 bar
Air Consumption: Low consumption
Balancing System: Automatic load balancing

Application Areas

Packaging Sector

Box and packaging handling
Pallet loading/unloading
Product transfer

Food Industry

Sack and bag handling
Crate and case transfer
Product placement

Logistics and Warehousing

Parcel and package handling
Shelf loading operations
Warehouse organization

Chemical Industry

Chemical packaging handling
Raw material transfer
Safe handling operations

Gripper Systems

Hook Systems

Standard hooks
Specially formed hooks
Safety locks

Ring Grippers

Adjustable rings
Multiple holding points
Rotating connections

Special Grippers

Product shape-specific design
Vacuum hybrid systems
Magnetically assisted grippers

Mounting Options

Ceiling Mounting: For maximum working area
Jib Crane Mounting: For mobility
Rail System: For wide working area
Portable System: For temporary use

Control and Safety

Simple Control: Easy-to-use control system
Safety Valves: Emergency protection
Overload Protection: For system safety
Rope Monitoring: Rope condition control

Maintenance and Service

Minimal Maintenance: Annual periodic control
Easy Part Replacement: Standard components
Long Life: Durable material use
Fast Service: On-site intervention capability

For cost-effective rope manipulator solutions, contact us.
